Description:

• 24” clearing width that moves 58 tons of snow per hour
• Ariens AX 208cc engine with electric start
• Compact, user-friendly design enables one-handed operation

Specification:

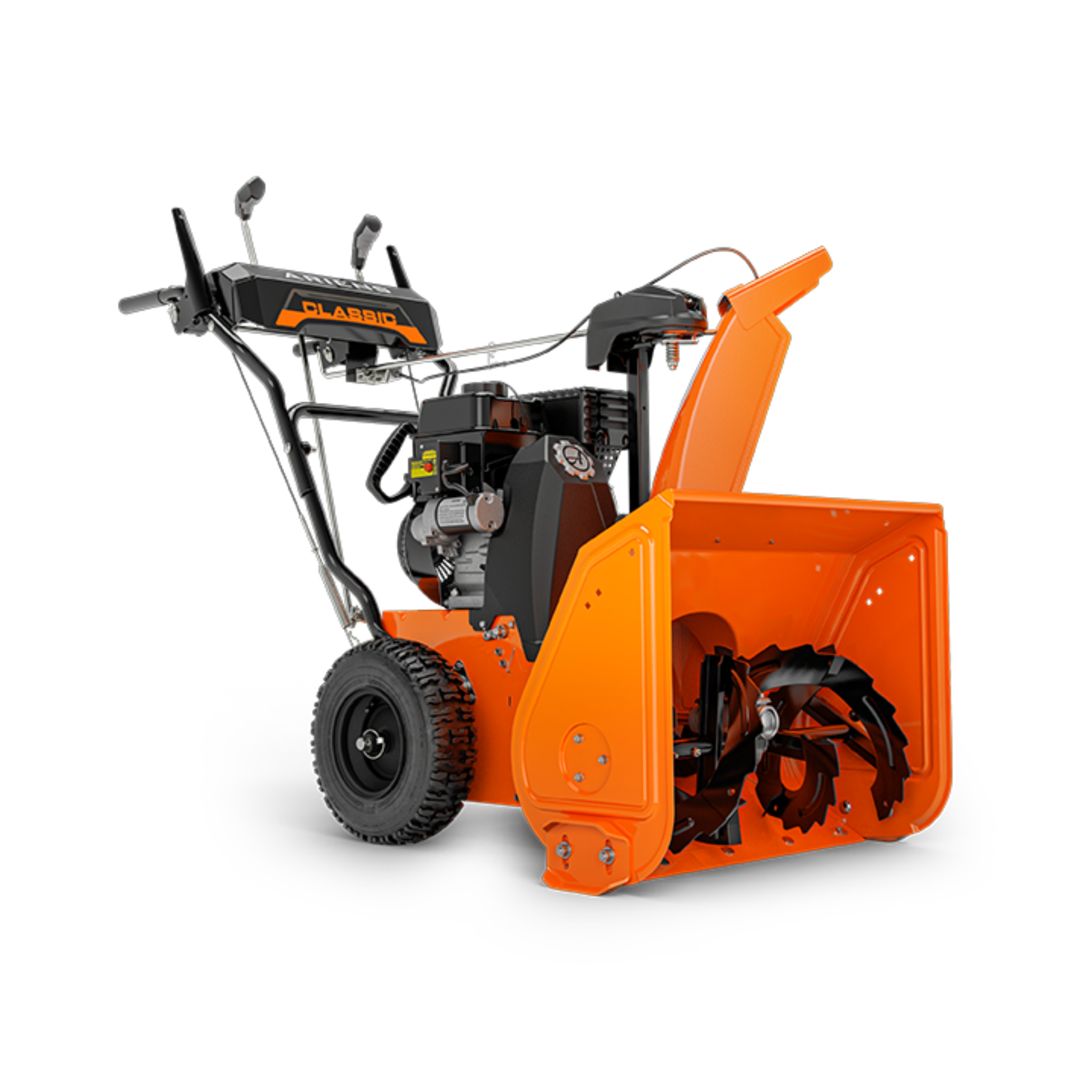

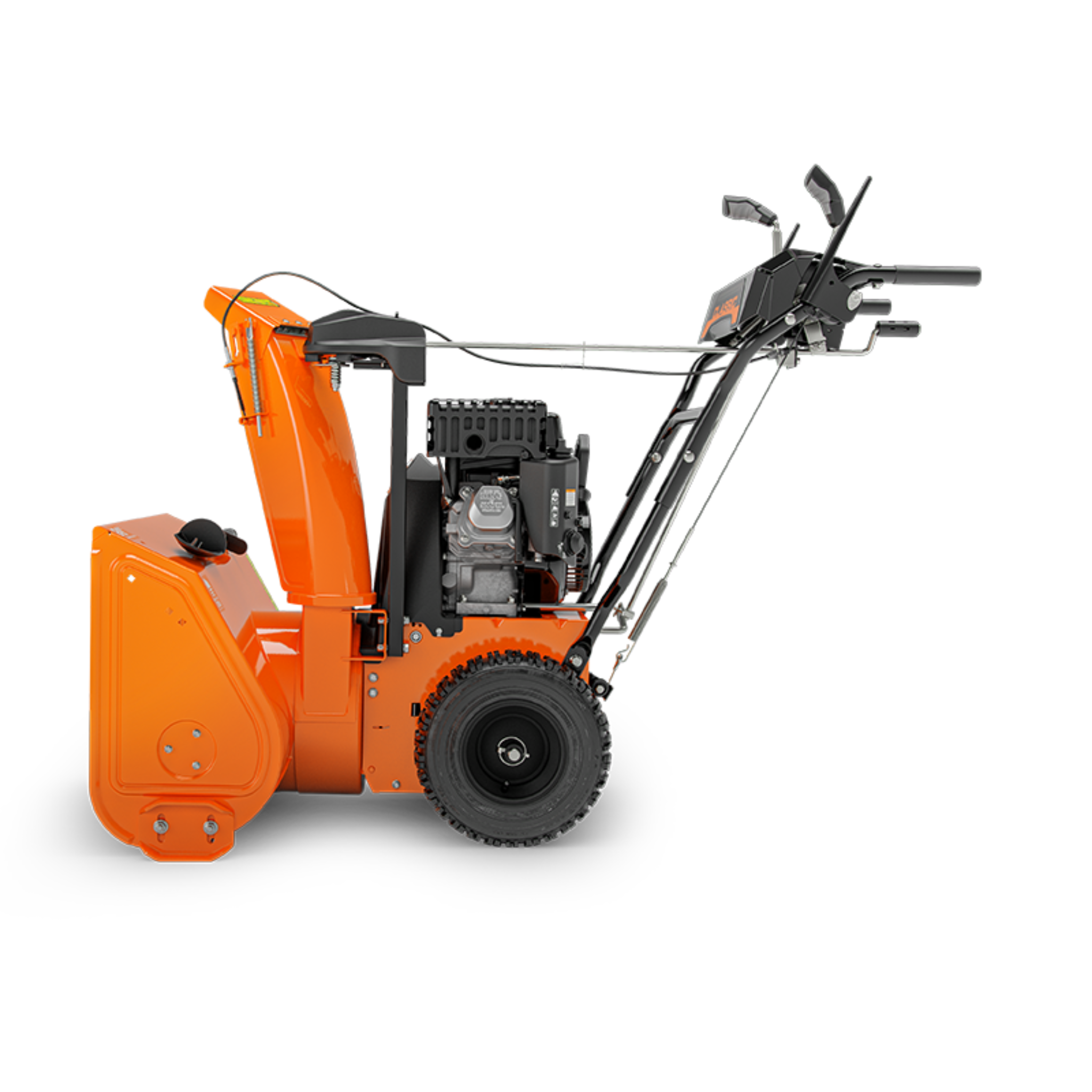

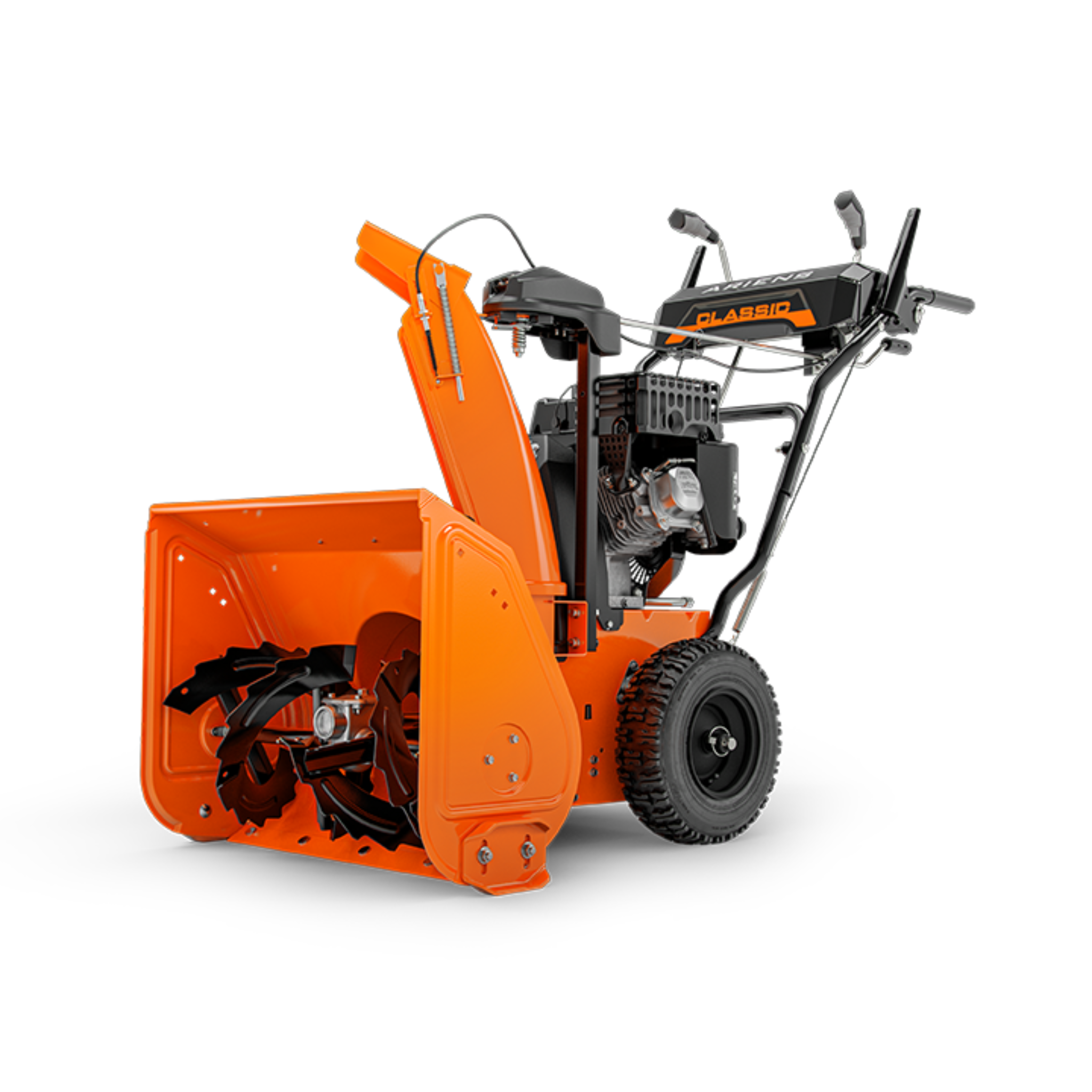

Title: CLASSIC 24

Model Number: 920025

Power Train:

• Engine: Ariens AX®
• Starting System: 120v / Electric
• Steering: Pin-Lock
• Drive Type: Disc-O-matic
• Speeds: 6 Forward / 2 Reverse
• Tire Size: 13 in / 33 cm
• Tire Type: Polar Trac

Clearing Specs:

• Clearing Width: 24 in / 60.9 cm
• Housing Height: 20 in / 50.7 cm
• Throwing Distance: 3 ft - 40 ft / 0.9 m - 12.2 m
• Chute Rotation: 2.5x Quick Turn
• Chute Turning Radius: 205°
• Deflector Control: In-Dash Lever
• Stage Type: Two Stage
• Auger Diameter: 11 in / 27.9 cm
• Auger Type: Steel Serrated
• Impeller Profile: Steel 3 Blade
• Impeller Diameter: 12 in / 30.4 cm
• Skid Shoes: Steel Reversible
• Scraper Bar: Steel Adjustable
• Gear Case: Aluminum

Dimensions:

• Length: 54.4 in / 138.1 cm
• Width: 26.4 in / 67 cm
• Height: 42.9 in / 108.9 cm
• Weight (Assembled): 173.3 lb / 78.6 kg

Warranties:

• Product Warranty: 3 years residential use; 90 days commercial use
• Gear Case Warranty: 3 years consumer; 90 days commercial

Accessories:

• Remote Deflector Control: Standard
• Drift Cutters: Optional
• One Hand Interlock: Standard
