Description:

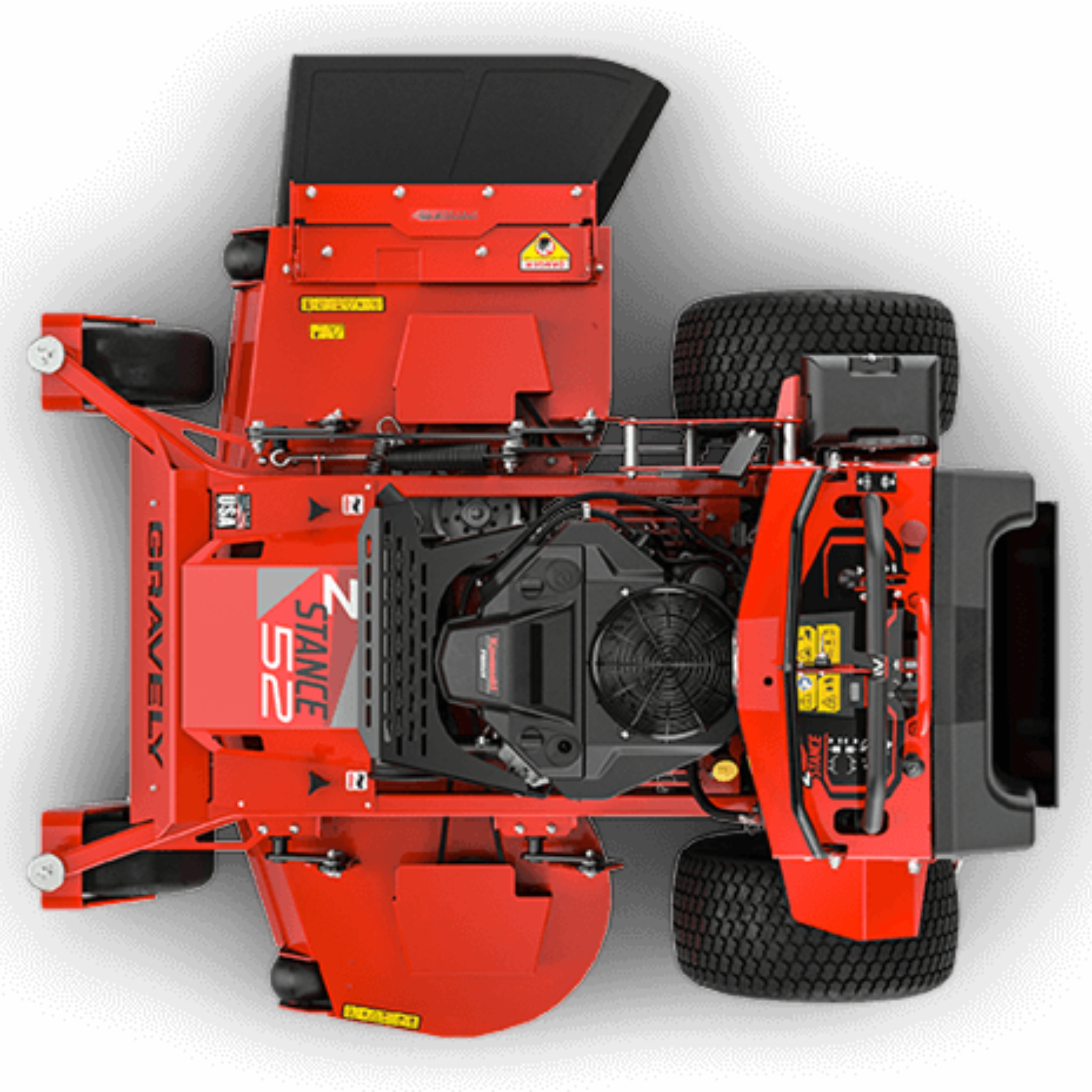

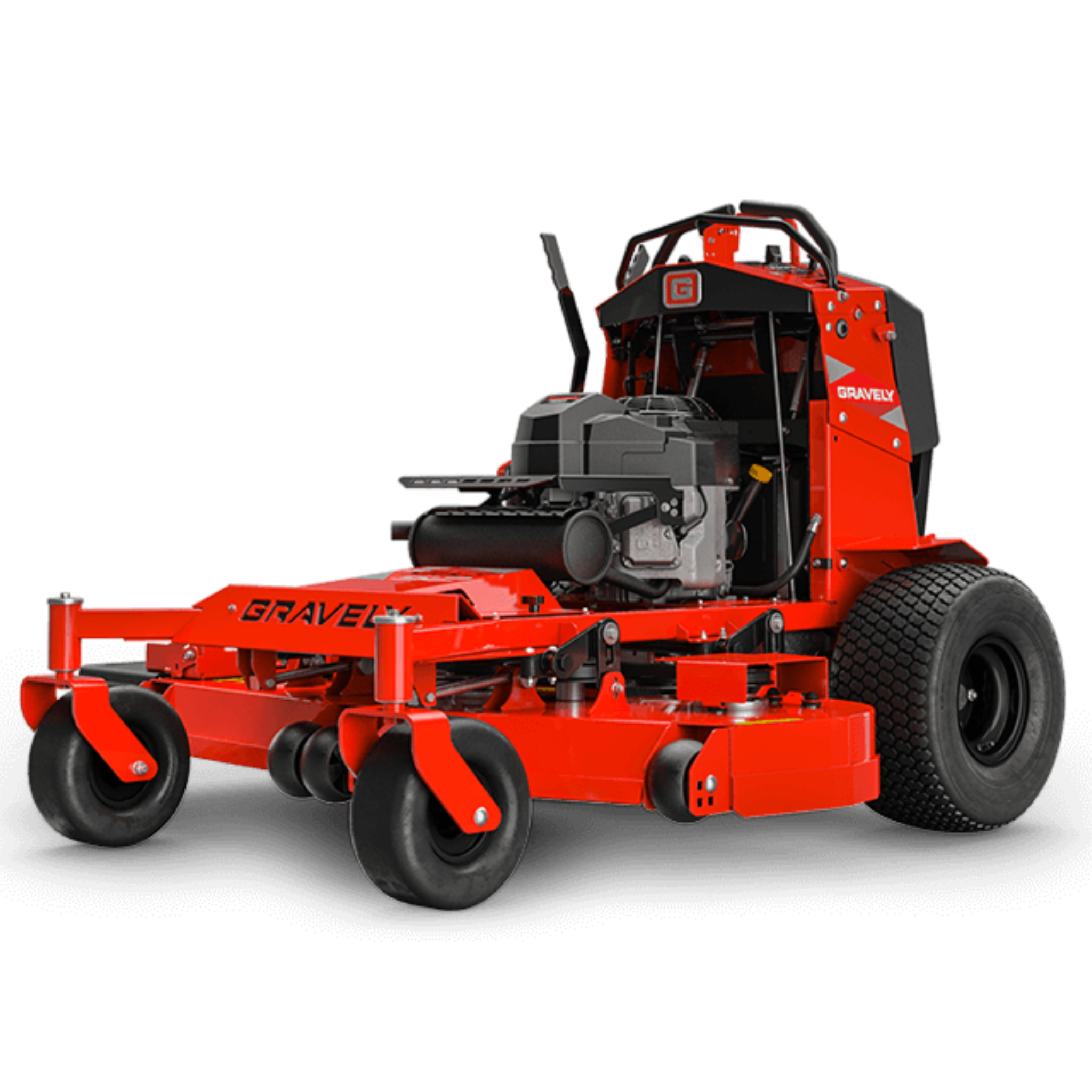

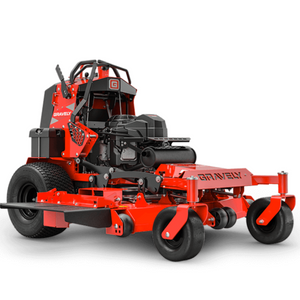

You’ll ride with pride as you deliver that perfect Gravely cut on the Z-Stance. This powerful commercial stand-on mower is easy to maneuver and a breeze to maintain. It’s three deck sizes make quick work of a corporate campus or a gated backyard. You take a stand for comfort, ingenuity, and durability when you’re on a Z-Stance.

Specification:

Model Number: 994158

Power Train:

• Engine: Kawasaki® FS651V
• Horsepower: 22 HP
• Engine Displacement: 44.3 in³ / 725.9 cc
• Fuel System: Gas
• Fuel Capacity: 4.5 gal / 17 L
• Drive System: Hydro-Gear® ZT-3100® Transaxles
• Transmission Type: Hydrostatic
• Brake Type: Lever Activated Parking
• Driver Position: Stand
• Ground Speed Forward: 7 mph / 11.3 kph
• Ground Speed Reverse: 3 mph / 4.8 kph
• Wheels Front: 11.0 x 6.0 in / 27.9 x 15.2 cm
• Wheels Rear: 20.0 x 10.0 in / 50.8 x 25.4 cm
• Rear Wheel Height: 8.0 in / 20.3 cm
• Front Wheel Track: 38.5 in / 97.8 cm
• Rear Wheel Track: 46.2 in / 117.3 cm

Electric:

• Charger Type: Standard
• Battery Capacity: 300 CCA
• Number of Batteries: 1
• Battery Voltage: 12 V
• Battery Type: Lead Acid - Maintenance Free
• Battery Size: U1

Deck:

• Deck Size: 52 in / 132.1 cm
• Coverage Hour: 3.6 acres / 1.5 hectares
• Spindle Type: Mechanical
• Deck Material: 10 ga
• Deck Construction: Fabricated X-Factor® 3
• Discharge Configuration: Side
• Cutting Height Min: 1.5 in / 3.8 cm
• Cutting Height Max: 5 in / 12.7 cm
• Cutting Width: 52 in / 132.1 cm

Dimensions:

• Weight (Assembled): 763 lb / 346.8 kg
• Length: 65.5 in / 166.4 cm
• Width: 52 in / 132.1 cm
• Width (Chute Up): 55 in / 139.7 cm
• Width (Chute Down): 66.8 in / 169.5 cm
