Description:

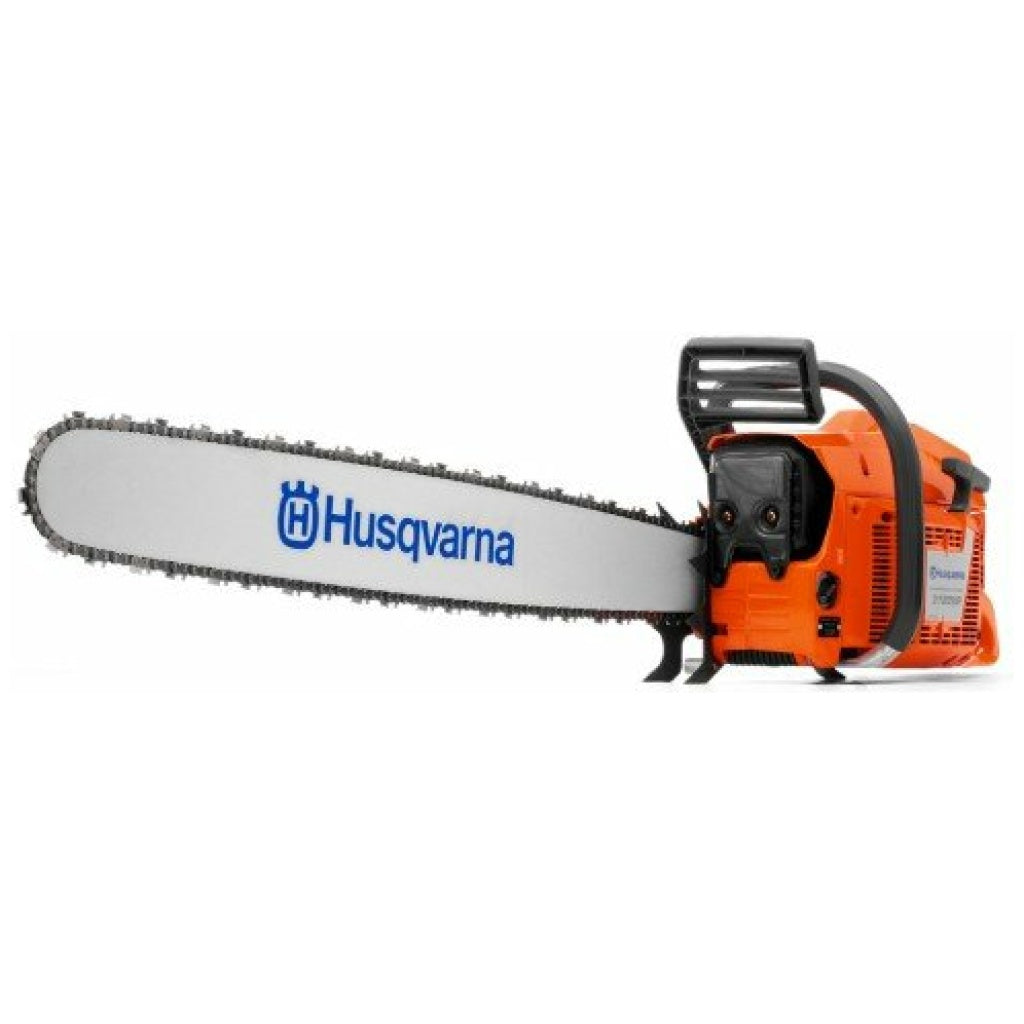

Husqvarna’s largest chainsaw is one of the most powerful in the world. The primary applications for the 3120 XP® are extreme logging, portable saw mills and stump work. This saw is designed to pull the chain on our longest bars-- up to six feet! Like all Husqvarna chainsaws, the 3120 XP® has a superior power-to-weight ratio. Thanks to Smart Start®, LowVib™ and other premium features, this heavy-duty chainsaw is surprisingly easy to start and operate.

Feature:

• Adjustable Oil Pump
• Quick-Release Air Filter
• Magnesium crankcase
• Three-Piece Crankshaft
• LowVib® Technology
• Smart Start® Technology
• Felling marks
• Inertia-Activated Chain Brake

Specifications:

Engine

• Cylinder Displacement: 118.8 cm³
• Output Shaft Power: 8.4 hp
• Chain Speed at Max Power: 65.9 ft/s
• Torque, Max: 7.7 Nm
• Torque, Max at RPM: 6,000 rpm
• Clutch Engagement Speed (±120): 3,400 rpm
• Electrode Gap: 0.02 in
• Ignition Module Air Gap: 0.01 in
• Idling Speed: 2,500 rpm
• Maximum Power Speed: 9,000 rpm
• Oil Pump Type: Automatic
• Oil Pump Capacity (Min): 30 ml/min
• Oil Pump Capacity (Max): 54 ml/min
• Spark Plug: Champion RCJ7Y, NGK BPMR7A

Equipment

• Recommended Bar Length (Min): 24 in
• Recommended Bar Length (Max): 42 in
• Bar Length Supplied: 0 in (Powerhead Only)
• Pitch: .404"
• Gauge: .063"
• Chain Type: Not included
• Sprocket Type: Rim 7

Dimensions

• Weight (excl. cutting equipment): 22.9 lbs

Sound & Noise

• Sound Pressure Level at Operator’s Ear: 102 dB(A)
• Sound Power Level, Measured: 115 dB(A)
• Sound Power Level, Guaranteed (LWA): 116 dB(A)

Vibration

• Equivalent Vibration Level (ahv, eq) – Front Handle: 6.7 m/s²
• Equivalent Vibration Level (ahv, eq) – Rear Handle: 7.8 m/s²

Lubricant

• Oil Tank Volume: 1.48 US pint
• Lubricant Type (Engine): Husqvarna 2-stroke or equivalent at 50:1
